A new way of thinking about sustainable, scalable, and efficient biomass processing
The Vapor-Static System is comprised of modules, each contained on it’s own skid to allow for ease of installation and maintenance.

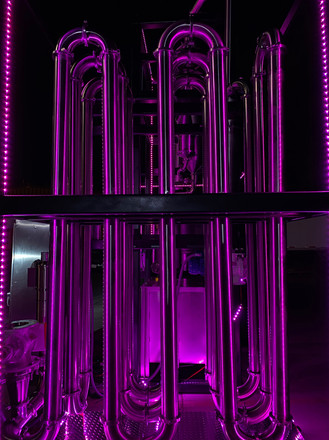

Vapor-Static Extraction System
™
VAPOR-STATIC
EXTRACTION
™
01 / EASY
Single operator ease of use,
fully automated control system
Turnkey system, limited ancillary equipment required
Continuous operation
02 / QUALITY
Produces high quality concentrate with low wax content
Solvent free extraction
03 / EFFICIENT
Eliminates the need for C1D1 or C1D2 facility design and expense
Vapor-Static
System Module Basics
™
HIGH QUALITY OIL OUTPUT
The Vapor Static line is composed of system modules, each contained on its own skid allow for ease of installation and maintenance.
Heater/Contactor Module
Biomass is continuously introduced into a heated air stream where the biomass is vaporized. The biomass is in contact with heat for only a few seconds. The biomass material is then separated from the vapor stream.
Water System Module
The vapor stream is shock-cooled and becomes a non-coalescing fog.
Collection Module
This module is the truly revolutionary aspect of the entire system. The biomass fog is carried into a wet electrostatic precipitator, where an electromagnetic field pulls the desired biomass out the fog for collection. The resulting high-quality concentrate is then pumped from the system into a collection vessel.
Controls Module
The controls module consists of temperature, pressure, level, and many other sensors that are integrated using our proprietary software to allow automated processing and control of the other modules. Control information is presented to the operator in an intuitive screen for ease of operation. A single operator can operate even our largest system using the controls module.
Clean-In-Place (CIP) Module
The CIP module allows easy cleaning and sanitization of the majority of the system infrastructure without having to disassemble major components.
